Wireless Automatic Water Level Controller Model No.WWLC-TX/RX
- Range up to 1 km (line of sight with specific antennas).
- Advanced Wireless Technology.
- Automatically starts and stops the pump.
- Dry run protection facility for the sump tank.
- Compatible with 1-phase and 3-phase pumps.
- Suitable for openwell pumps and self-priming pumps.

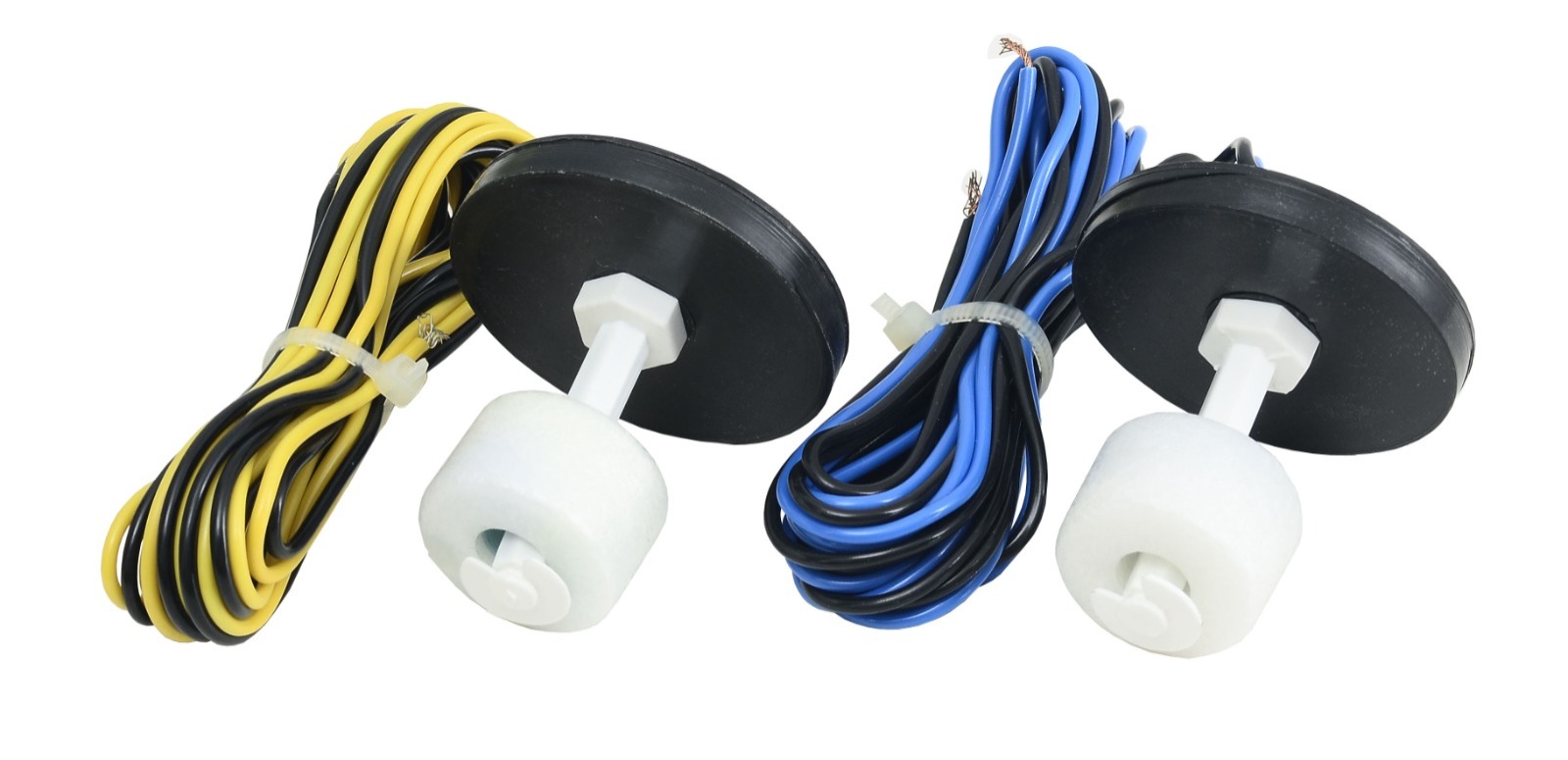

- Corrosion-free magnetic float sensors.
- Bypass option to bypass the controller at any time.
- Save motor, power, time, and money.
- Prevent damage to roofs and walls from overflowing water.
- Useful for homes, apartments, and industries, almost everywhere.
- 1-year full replacement guarantee.
- Easy to install.
SKU: WWLC-01
Status: Only 9 left in stock
| MRP.: |
|
| Price: | ₹3388.98 excl. GST |
| ₹3999.00 incl. GST | |
| You Save: | ₹1000 (20%) |
| Inclusive of all taxes |
HOW WIRELESS AUTOMATIC WATER LEVEL CONTROLLER WORKS
This product is designed for the automatic control of the motor, which ensures a constant reserve of water in storage tanks.

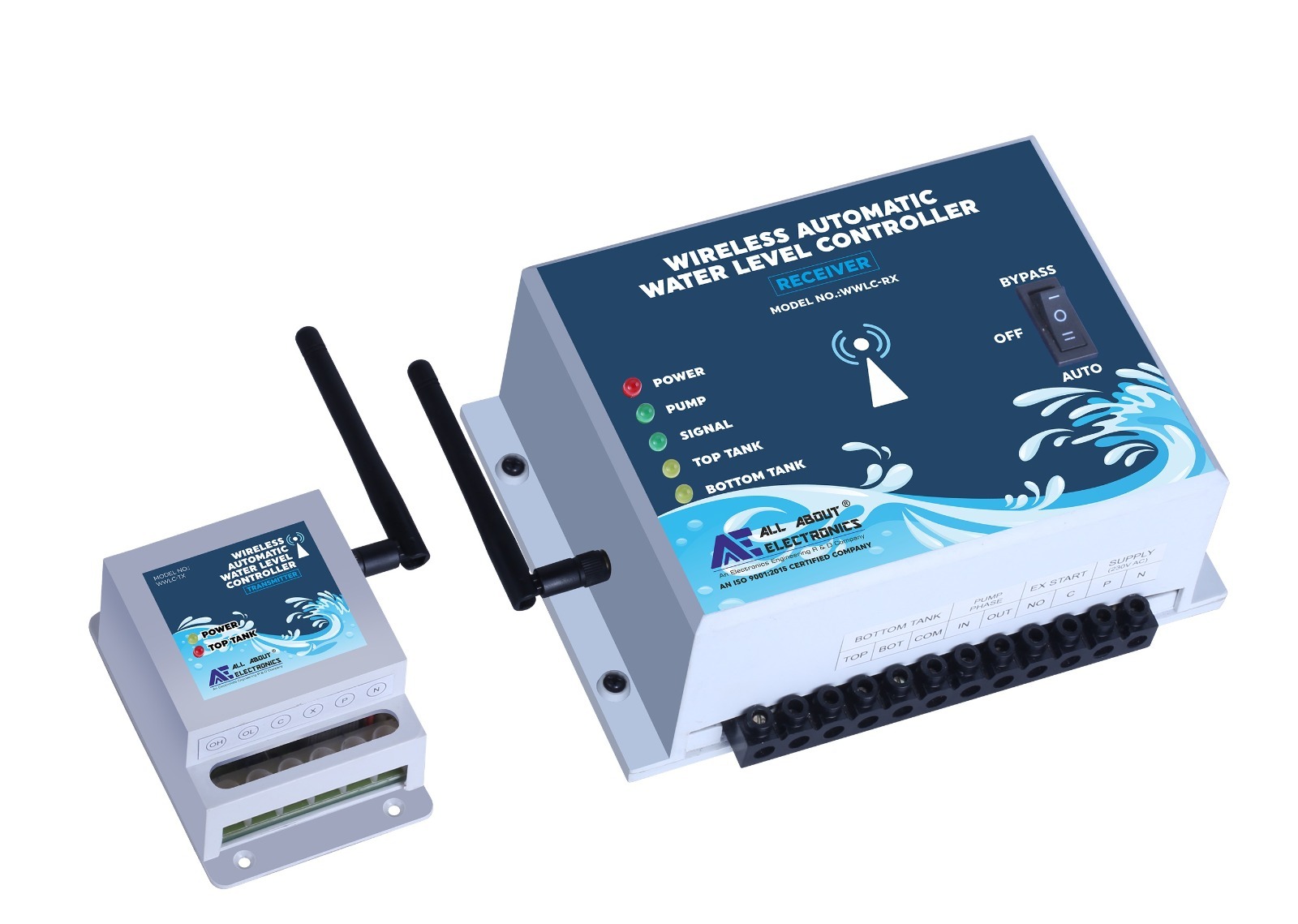

This product has two units: a Transmitter and a Receiver. The Transmitter should be installed near the overhead tank, while the Receiver has to be installed near the pump starter. The Transmitter continuously monitors the water level in the overhead tank using two sensors installed in the tank and sends the status of the tank to the Receiver.
The Receiver switches ON the motor when the water level in the overhead tank drops below the prefixed low level (on point) and turns off the motor when the water level rises up to the prefixed high level (off point). The Receiver also has a sensor to monitor the availability of water in the sump tank or bottom tank. The motor also switches off when the sump water is exhausted before filling the overhead tank, preventing the pump from running dry.
These are state-of-the-art, digital technology, advanced microcontroller-based products.
APPLICATION AREAS:
This system can be installed in homes, apartments, commercial complexes, hotels, hospitals, residential colonies, and industries.
| Brand | ALL ABOUT ELECTRONICS |
| Suitable For | Single / Three Phase with all types of starter |
| Installation Type | Cabling |
| Display Type | LED |
| Wired/Wireless | Wireless |
| Audible Alarm | No |
| Model Number | WWLC-01 |
| LED Indicators | Yes |
| Number of Sensors | 3 |
| Covered in Warranty | Water Level Controller and Sensor's |
| Service Type | Manufacturer Warranty |
| Warranty Summary | Domestic warranty |
| Weight | |
| Height | |
| Width | |
| Depth | |
| Power Consumption | 3W |
| Power Requirement | Input power supply AC 230V |
| Technology Used | Advanced wireless Technology |
